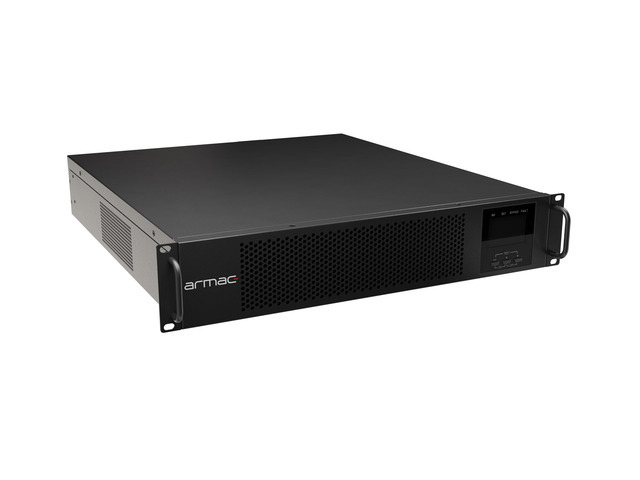

UPS RACK R/2000I/PF1 ON-LINE
The Armac R/2000I/PF1 UPS from the Rack On-line series has been designed for demanding users who, in the event of a power outage, want to safely maintain the operation of equipment in a 19” Rack cabinet (and not only), consuming its considerable energy reserves.
Suspension of work, failure of devices in the server room can cause not only serious financial losses, but also the loss of important data. That is why it is worth investing in the UPS R/2000I/PF1, which will prevent many unpleasant effects of a potential overvoltage.
POWER FACTOR
A high power factor (Power Factor), maintained at the level of 1.0, will ensure that almost all power transferred to the device at the input will be given back as output power. The consumption of electricity for the device’s own needs is marginal, which translates into high energy efficiency. As a result, the maximum power of connected devices can be 2000W at apparent power 2000VA.
IMMEDIATE RESPONSE
Suspension of work due to a power outage can result in serious financial losses and loss of important data. With Armac R/2000I/PF1 you don’t have to worry about that. The device works in continuous mode, which means that in the event of a failure it does not have to switch to battery operation. No waiting time for a reaction is an advantage in the form of reducing the risk of damage to the supported device.
INCREASED BATTERY LIFE
Even greater battery life with the Armac R/2000I/PF1 UPS is possible, thanks to changing the default “Cut-Off” voltage value, which directly reduces the risk of excessive battery discharge, extends its life and eliminates the chance of its damage. Do you expect a longer maintenance time at the expense of battery life? Thanks to the settings available from the LCD panel, you can change the voltage value yourself. What’s more, every 60 days the UPS will perform an automatic battery discharge test, all without the need for any action on the part of the user. This test will not only extend the life of the battery, but also minimize the risk of potential servicing. See how simple it is.
PERFORMANCE YOU CAN COUNT ON

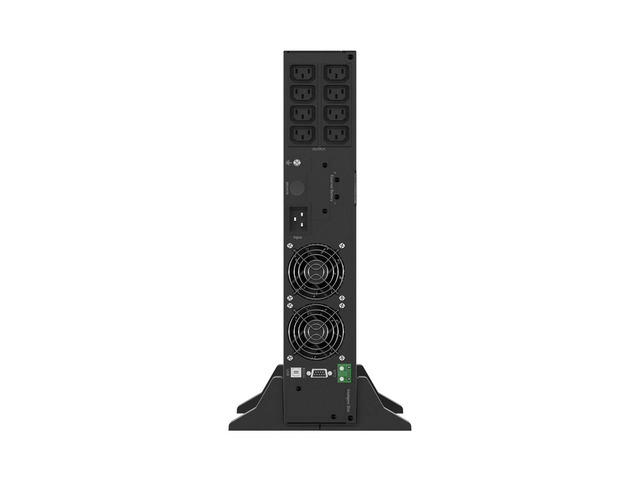

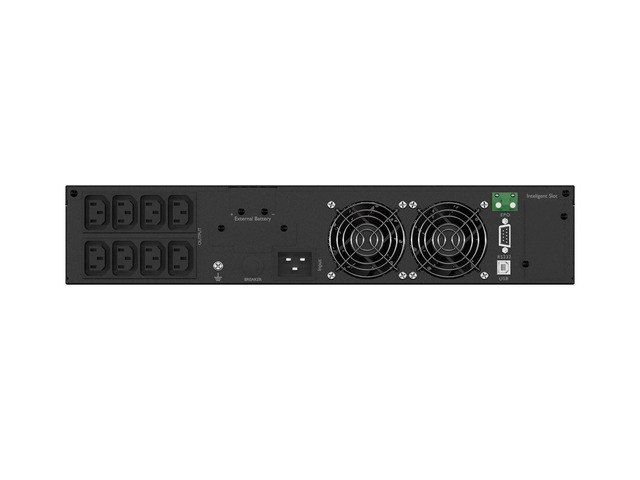

We created the Armac R/2000I/PF1 uninterruptible power supply with the most demanding tasks in mind, such as protecting really powerful computers, workstations or equipment with high energy consumption. The UPS is able to perform such heavy work thanks to the use of more efficient 9Ah batteries, with a power factor (Power Factor) of 1.0. What’s more, this model has 8 IEC 320 C13 output sockets, allowing you to protect several devices at the same time.
The UPS of this series always provides a full sine wave, it was created for sensitive equipment with high energy consumption. The double conversion function makes the UPS have ideal electrical parameters at the output, it converts all incoming AC current and then supplies the device with current generated by the UPS itself. Transfer time is zero between AC and DC mode.
POSSIBILITY OF EXTENDING THE BACKUP TIME BATTERY MODULE – MODEL B/0609/R
There are situations in which much more time is needed to ensure the safety of electronic devices during a power failure. Therefore, to extend its backup time on the battery, the R/2000I/PF1 emergency power supply has been equipped with a socket for connecting additional, dedicated Battery Pack B/0609/R modules. However, it is worth remembering that when connecting the BP, make sure that the total voltage of the UPS battery and the module is the same.
FULL SECURITY
The correct operation of the emergency power supply is ensured by a specially built-in processor that controls the parameters of the device itself, its correct operation and the power supply of connected devices. The technology used in the UPS also ensures automatic battery charging in Stand-By mode and automatic start-up after the mains power returns.
Importantly, each Armac emergency power supply system is equipped with an overload protection module. When the UPS is overloaded during its normal operation, the device will automatically safely terminate the power supply to the devices connected to it. This solution increases the safety and comfort of using Armac emergency power supplies.
IDEAL FOR SENSITIVE EQUIPMENT
Due to the nature of its operation (full sine wave during battery operation), the power supply can be used with devices with an electric motor or heater, e.g. laser printers, scanners, garage and entrance gates, electric roller shutters, central heating furnaces. You also do not have to invest in expensive differential circuit breakers. This model can easily work with a circuit breaker up to 30 mA.
CONVENIENCE OF MONITORING AND EASY TRANSPORT
Connect the UPS to your computer (USB or RS-232) and use the PowerManager II software, which will allow you not only to issue commands, but also monitor the operation of the device. Its simple interface will make it easy for even less advanced users to use the tool.
Want to transport the device from one place to another? Now you can. All larger electrical components such as capacitors or coils have been additionally reinforced with an additional layer of glue between them and the PCB laminate. This solution increases reliability and safety, making transporting the device from one place to another even easier and safer.
MANY INSTALLATION POSSIBILITIES AND USEFUL MOUNTING ACCESSORIES INCLUDED

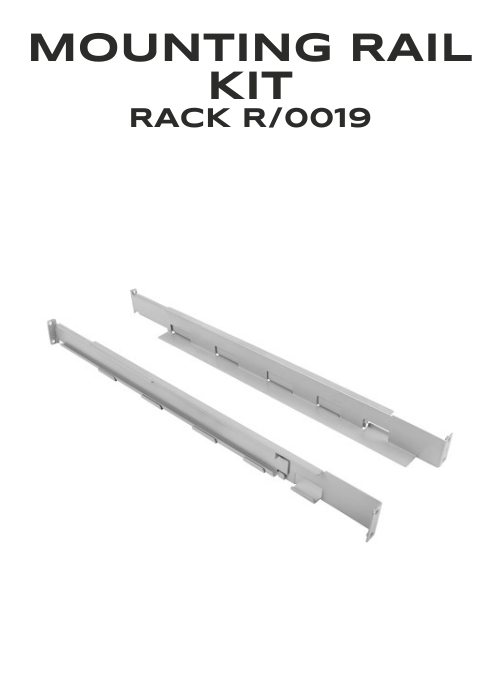

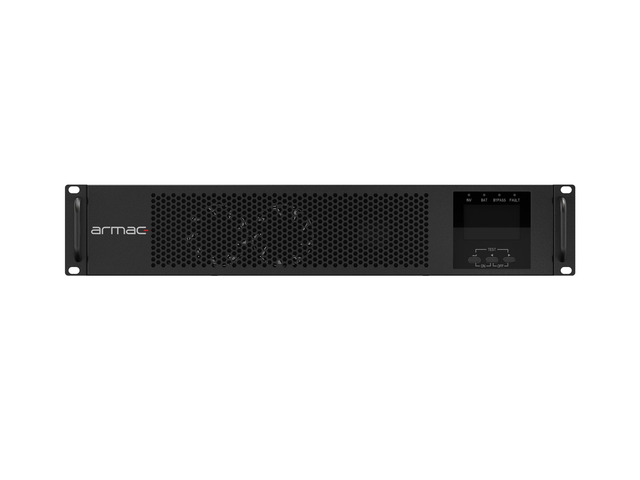

The device can be mounted in a 19” Rack in two ways: using only mounting ears (included with the product) or with additional use of the Armac mounting rail set – R/0019, and this option is recommended due to better stability and safety of the Battery Pack.

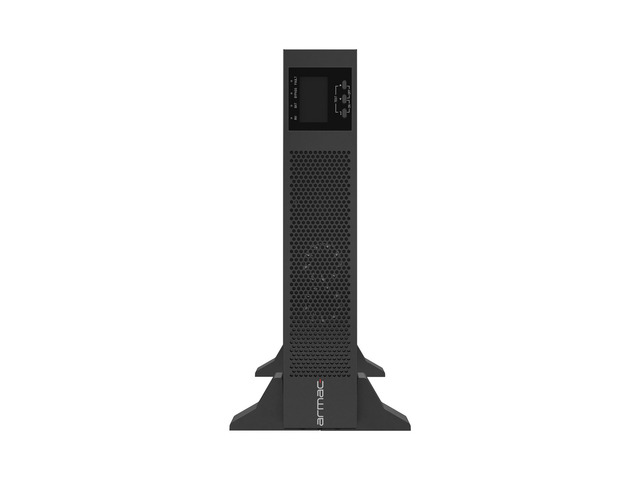

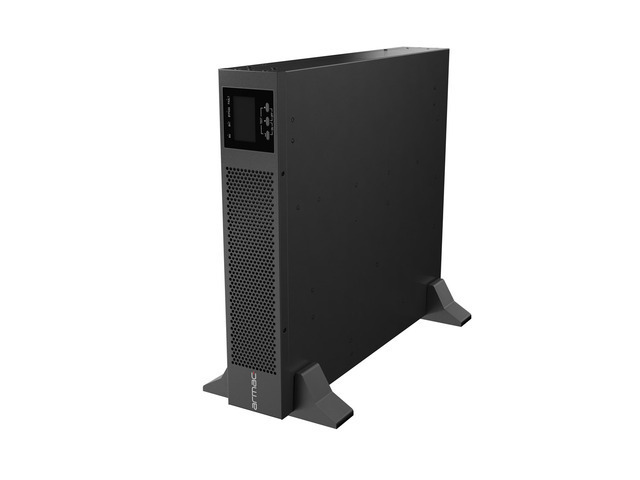

The UPS set also includes special stands that allow the device to be installed vertically, outside the Rack. If we want to set up the UPS and more than one Battery Pack module in this way, we have such an option, thanks to the leg extension elements. The package also includes a supply of M6 screws. Both products are made of a metal alloy, which guarantees the durability of the material.
* Software is not included in the set – it must be downloaded from www.armac.pl
** USB cable is not included in the set
